Kreon Skyline

1
2
3
4
5
6
1

Compatible only with Ace arm

2

LED indicator to visualize precisely the ideal scanning distance

3

Quickly removable scanner

4

200mm blue laser line

5

Hard probe or touch-probe attachment

6

High resolution camera

Kreon Skyline 3D Scanner

A breakthrough in laser line scanning technology, the Kreon Skyline sets new standards with an incredible 200mm laser line width and 600,000 points per second data collection rate.

Large complex/detailed objects can be scanned quickly and efficiently. In addition the blue laser line enables the scanning of shiny objects such as machined metal to be scanned directly without the need for spray or dulling material.

Attributes
  • Very Fast
  • Wide Laser Line
  • Blue Laser Line

Key Specifications

600,000 pts/sec

Speed

15 microns

Accuracy

200 mm

Laser Line Width

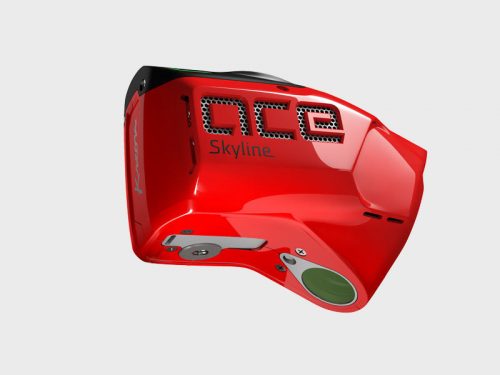

Kreon Ace Skyline Europac 3D

Machine Specifications

The Skyline scanner can be equipped with a hard probe or touch-probe. This solution enables to scan and probe in the same measuring range, proving its utility and efficiency, especially for the alignment operations.

  • Decreased number of scan passes on the part thanks to 200 mm laser line
  • Faster movement of the 3D scanner assured by the increased frequency of up to 300 lines per second
  • Acquisition speed 600,000 points/sec, allowing to get quickly the dense point cloud
  • Ergonomic “push and pull” handle provides fabulous scanning efficiency.
  • Scan longer due to the 3D scanner lightness (weight under 400 g)
  • Reach and scan the hard-to-access zones of each part, thanks to compactness and reduced stand-off distance
  • Visualize precisely the ideal scanning distance with the LED indicator
  • Remove the scanner rapidly and without any tool to accelerate the probe mounting.
CLICK TO PLAY VIDEO

KREON SYKLINE EYES

THE MOST ACCURATE

Kreon Skyline Eyes

The most accurate in the Skyline range of 3d scanners with an incredible 9 micron accuracy.

KREON SYKLINE WIDE

THE FASTEST

Kreon Skyline Wide

Scan large surfaces quickly and easily with the super wide 200mm laser band width

KREON SYKLINE OPEN

COST EFFECTIVE

Kreon Skyline Open

The ‘Open’ Skyline is the most cost effective solution for the majority of 3D scanning jobs

Arm & Laser Packages

BACES ARM SOLANO PACKAGE

BACES SOLANO PACKAGE

Eco Package

Baces Arm & Solano Laser
  • Low Cost solution
  • Fast and flexible
  • Light weight

ACE ARM SOLANO BLUE PACKAGE

Ace Arm Solano Blue Package

Pro Package

Ace Arm & Solano Blue Laser
  • Mid level solution suitable for most applications
  • Temperature compensation
  • High accuracy and speed

ACE ARM ZEPHYR 2 BLUE PACKAGE

Ace Arm Zephyr 2 Blue Package

Ultimate Package

Ace Arm & Zephyr II Blue Laser
  • High End solution for high accuracy and resolution
  • Temperature compensation
  • Blue Laser for difficult to scan surfaces

ACE SKYLINE PACKAGE

ACE SKYLINE PACKAGE

Ace Package

Ace Skyline
  • Advanced Scanning Speed
  • High Resolution & Accuracy
  • Perfect Integration Between Scanner & Arm

Sector Suitability

Aerospace
Automotive
Industrial

Technical Specifications

Scanner SpecificationSkyline EyesSkyline WideSkyline Open
Scanning Speed6000,000 pts/sec6000,000 pts/sec6000,000 pts/sec
Accuracy9 microns15 microns20 microns
Laser Line Width Up to 100mmUp to 200mmUp to 100mm
Field of View 80mm110mm110mm
Line Resolution 2000 points per line2000 points per line2000 points per line
Standoff Distance90mm85mm85mm
Auto Quality CheckYesYesYes
Temperature CompYesYesNo
Laser ClassBlue Class 2MBlue Class 2MBlue Class 2M

For more information please get in touch
