Artec Ray II Lidar 3D Scanner

Onboard Control – Fuss Free Control for instant 3d scanning


Brillian texture capture – 36 MP 3- camera system


Fast – Capture a full dome at highest resolution in 1.7 mins


2 million points per second data capture


IP54 Water and Dust Protection


Continuous Battery Supply


Or £850 per month (Indicative 48 months with VAT Deposit)

Artec Ray II 3D Scanner

Super Fast Long Range, High Accuracy Lidar 3D Scanner

The Artec Ray II  is a class leading lidar long-range scanner with incredible accuracy and precision. Capture large objects up to 130 meters away, with metrology grade 3d point accuracy and angular precision.

The Artec Ray II is extremely versatile, with the capability to scan detailed objects such as wind turbines, ship propellers, airplanes, bridges, buildings and vehicles. It is also used for forensic investigations and mapping of complex archeology sites. High quality scans and meshes can be used for applications such as reverse engineering, inspection, digital twins, crime scene documentation and change-over-time civil infastructure assessment.

The scanner comes equipped with a remote app theat enables effortless operation when scanning complex objects. The Visual Inertial System (VIS) also tracks the realtive position of the scanner which will automatically register muliple scan positions to the same co-ordinate system. The capture of vehicles and aircraft can be completed in just a few hours with unparalled convenience and precsion.

Call Today

0330 229 0175

Book A Free Demo

How we can help?

  • Fast- Collect a full dome at highest resolution in 1.7 mins

  • Integrated Touch Screen

  • Brilliant HDR Texture - 36 MP - 3 Cameras

  • Accurate - 3D Point Accuracy at 1.9mm from 10 Metres

  • Continuous Battery Supply

  • IP54 Water and Dust Protection

Artec Ray II Tripod

Precision at metrology-grade standards

Artec Ray II delivers scans with exceptional 3D point accuracy and leading-edge angular precision.

3D point accuracy @10m1.9mm
3D point accuracy @20m2.9mm
3D point accuracy @40m5.3mm
Angular accuracy0.87 mm @10m (or 18”)
Range Accuracy1.0 mm + 10 ppm
Range noise0.4 mm @ 10m – 0.5mm @ 20m
Learn How it Works

Perfect Match For Leo 3D Scanner

Artec Ray II can be seamlessly combined with the Artec Leo handheld 3D scanner, so that objects can be captured in full, included hard to reach detailed areas in order to complete 100% scans of complex objects.

Comprehensive long-range capture

 Capture up to 130 meters  at 2 million points per second

The Artec Ray II long range scanner can capture an extensive 360° (Horizontal) -300° (Vertical) field of view and distances up to 130 meteres away. The system provides exceptional accuracy and scan quality.

Check And Retune

The system can intitate an automatic calibration by scanning the surroundings, giving an in-the-field retune or notifying if additional action is required.

Accuracy Certificate
All systems are delivered with an accuracy certificate to ensure evry scanner meets all required specifications.
Declaration of Conformity

Rest assured that your scanner has undergone rigorous testing and is fully guaranteed to comply with the comprehensive list of 11 European safety standards.

Real-Time Registration On Board

Real-time tracking of the scanner’s movement through feature tracking and advanced algorithms, offering seamless 3D-space navigation, including Ray II’s Visual Inertial System (VIS), Altimeter, compass, and Global Navigation Satellite System (GNSS).

Artec Studio

Delivered with Artec Studio software, this industry leading software offers a new perspective on Lidar scan processing. Utilise Artec3D’s unique and incredibly powerful algorithms for registering and creating triangulated mesh 3d models.

Extract CAD primitives from mesh surfaces for downstream operations in CAD softwares such as Solidworks or alternatively the data can be used for inspection against nominal CAD data to ensure all quality standards have benn met during manufacture.


    The Ray II scanner delivers brilliant texture mapping, enhancing the quality of 3D scans with impressive visual detail.

Artec Ray II Onboard Control

Onboard Control

The user-friendly Ray II ensures hassle-free scanning, as basic features are readily accessible onboard, making the process as simple as pressing a button without the need for a computer or any other device.

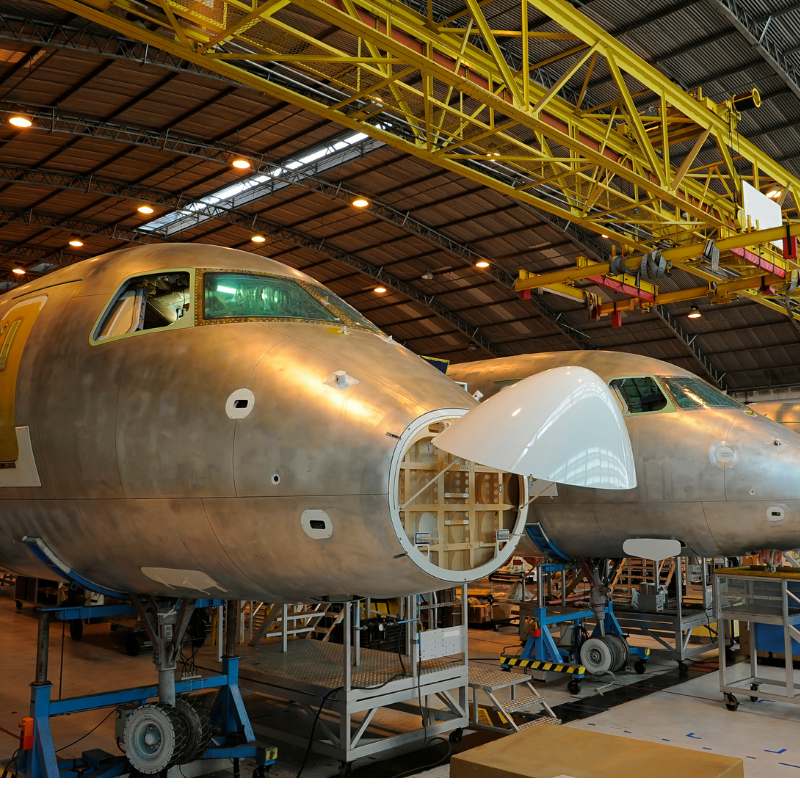

Capture large aircraft for applications such as inspection, design development and process testing. Artec Ray’s incredible capture rate of 2 million points per second allows for rapid capture of large objects quickly and efficiently.

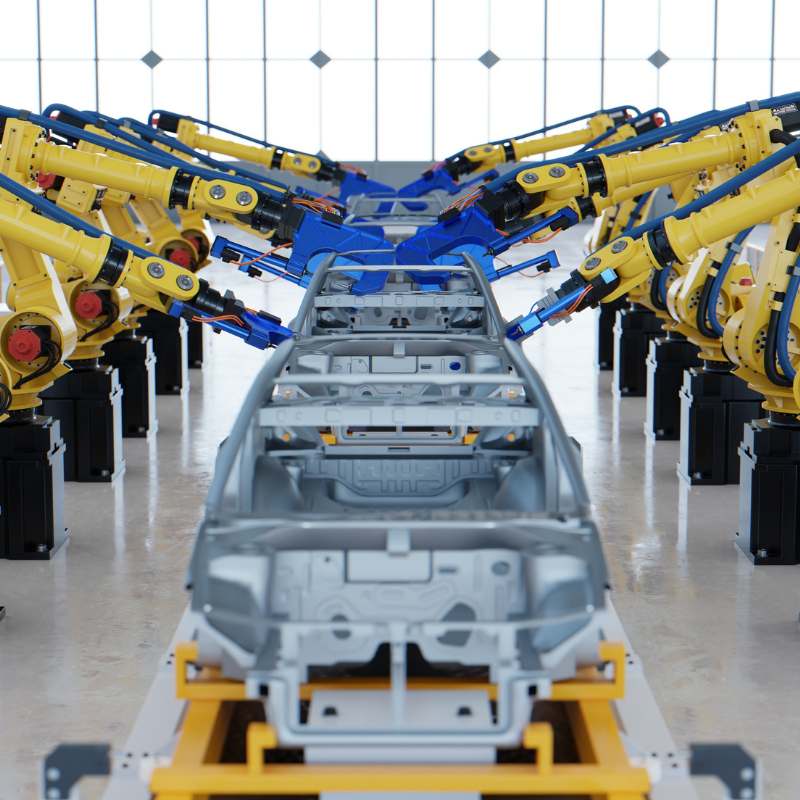

In a matter of minutes, the Artec Ray II excels at capturing mechanical and freeform shapes and surfaces, while proficiently detecting  imperfections. With its high-resolution point cloud, automotive specialists benefit from enhanced capabilities for inspection, crash testing, design optimization, and various other applications.

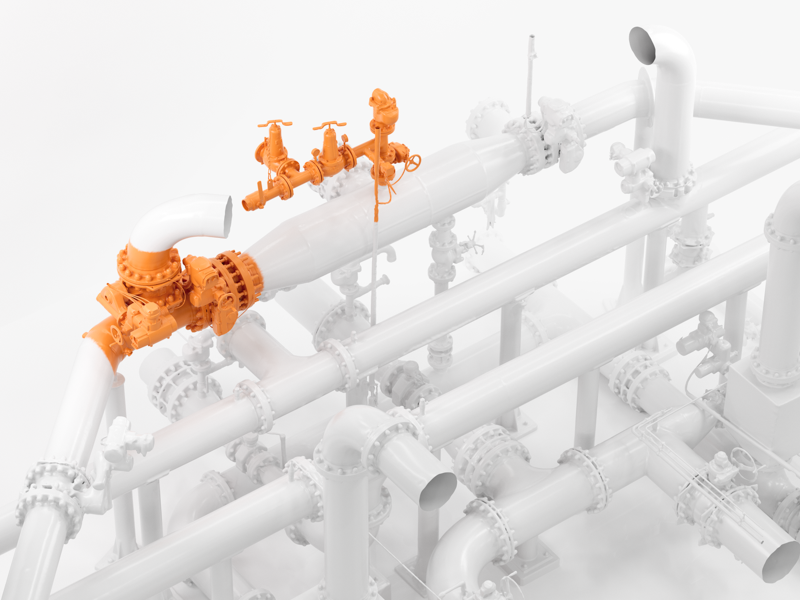

The Ray II scanner is the perfect choice for digital twin creation pipelines, as it provides industry-class accuracy, speed, and user-friendly operation. With its capabilities, you can efficiently capture surface data at various stages throughout the entire object lifecycle.

digital twin

With the introduction of the portable, wireless Ray II, investigators can now efficiently document entire scenes and evidence, ushering in a new era of forensic investigation.

Forensics 3d scanning

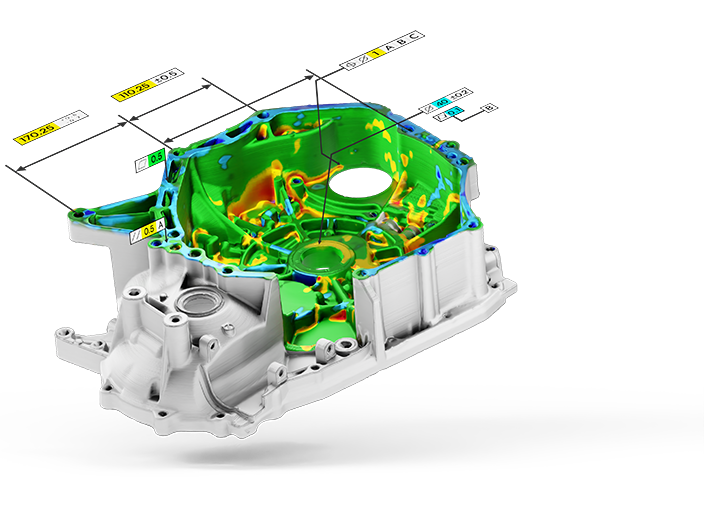

Manufacturers and their clients can confidently identify defects and dimensional non-conformities, thereby expediting production processes while maintaining the highest levels of product quality control.

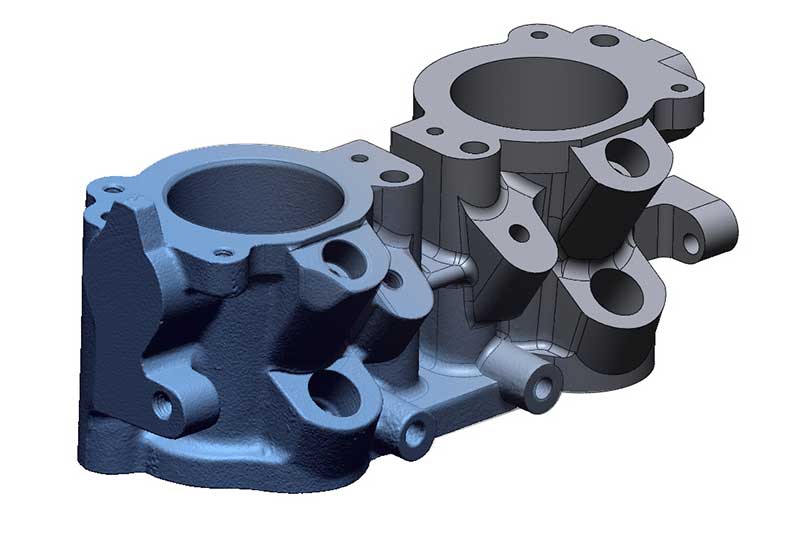

The powerful combination of Ray II and Artec Studio’s scan-to-CAD functionality sets a new standard among 3D laser scanners. It offers detail-rich, high-quality scans that significantly accelerate reverse engineering workflows with unparalleled, metrology-grade precision.

Revealing a wealth of 3D detail, the portable Ray II empowers designers and engineers to enhance CAD projects, streamlining prototyping and design processes for large objects and machinery.

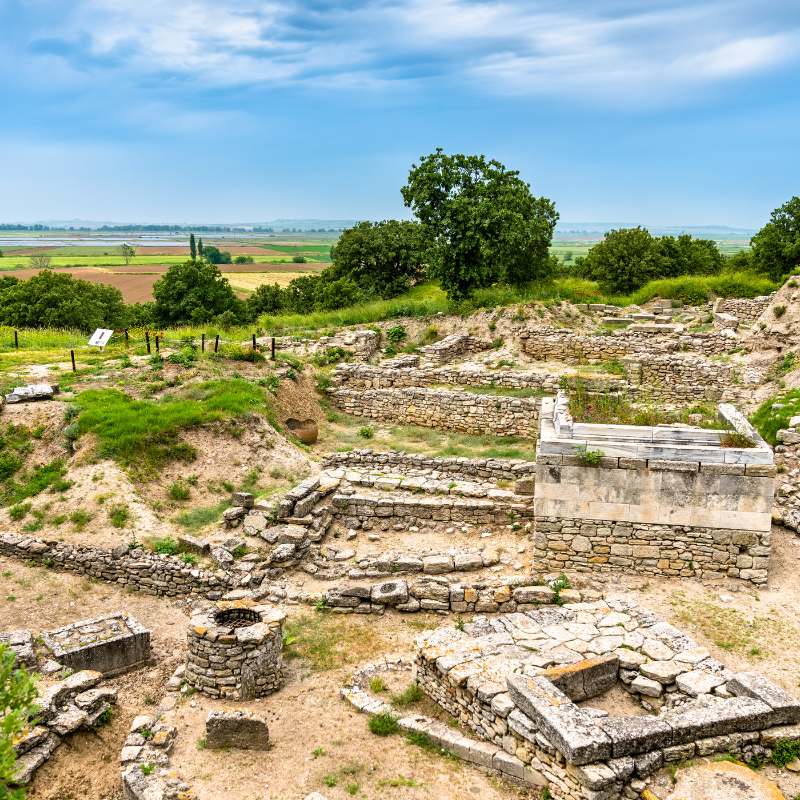

Equipped with the Ray II, cultural and heritage preservation specialists can safeguard priceless sites and objects digitally, facilitating regular inspections and the ability to transform scans into captivating 3D models for virtual exhibitions.

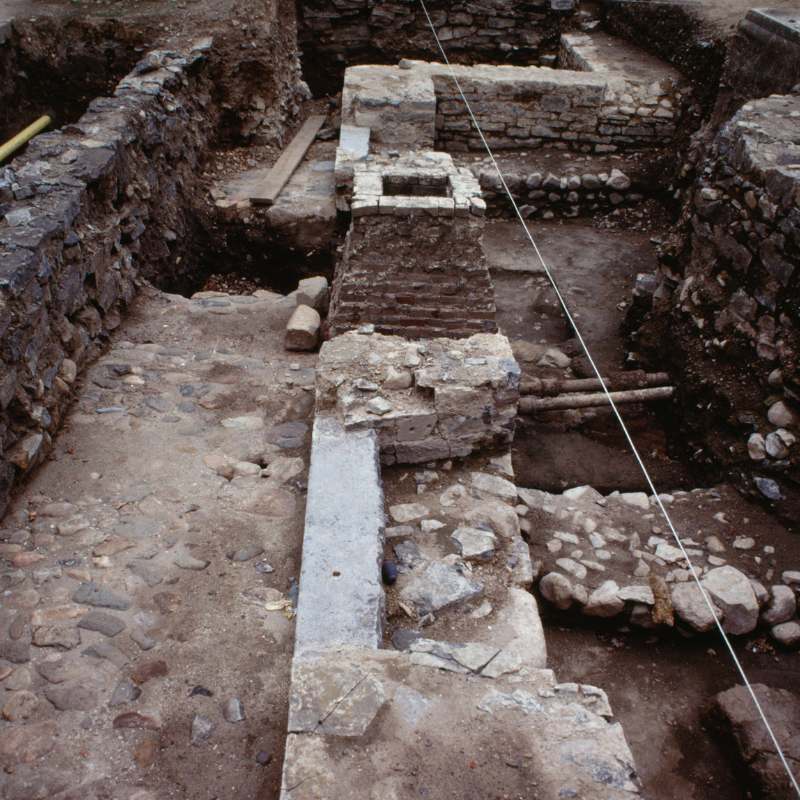

With its innovative technology, the Ray II provides archaeologists with the capability to effortlessly generate research-ready 3D excavation documentation, digitally preserve artifacts and fossils, and conduct in-depth site analyses.

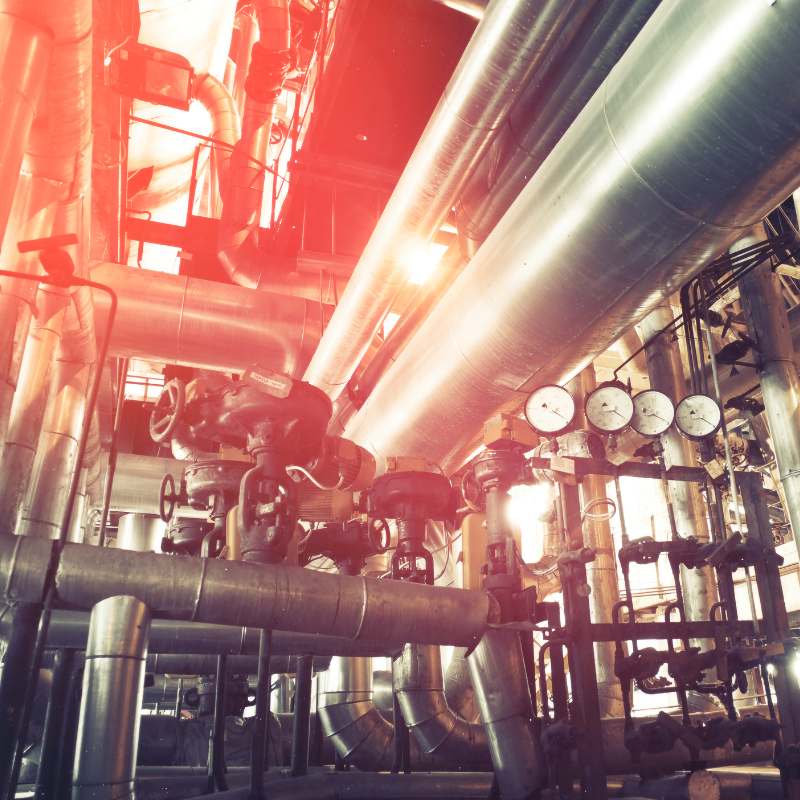

The Ray II takes infrastructure inspection and design up to the next level, capturing structures with world-class precision and speed, improving driving safety and resilience in construction and maintenance of roads, bridges, wind turbines, tunnels, dams, and more.

Artec Ray II Technical Specifications

Accuracy & Resolution
3D point accuracy 1.9 mm @ 10 m
2.9 mm @ 20 m
5.3 mm @ 40 m
Angular Accuracy18″ (0.87 mm @ 10 m)
Range Accuracy1.0 mm + 10 ppm
Resolution3 user selectable settings:
3 / 6 / 12 mm @ 10 m
Range Noise0.4 mm @ 10 m
0.5 mm @ 20 m
Field Of View & Range
Field Of View360° (horizontal) / 300° (vertical)
Range0.5 — 130 m
3D Capture RateUp to 2,000,000 pts/sec
Scanning time without texture @ 10 m1.7 min @ 3mm resolution
0.85 min @ 6mm resolution
0.4 min @ 12mm resolution
Scanning time with texture @ 10 m2.7 min @ 3mm resolution
1.9 min @ 6mm resolution
1.4 min @ 12 mm resolution
Colour Capture
Camera36 MP 3-camera system captures 432 MPx raw data for calibrated 360° × 300°
spherical image
HDRAutomatic, 5 brackets
On ScannerTouchscreen control with finger touch, full color WVGA graphic display
480 × 800 pixels
MobileArtec Remote app for iOS and Android tablets and smartphones including:
• Remote control of scan functions
• Settings selection
• Launch scanning
Real time registrationAutomatic point cloud alignment based on real time tracking of scanner movement
between setups based on Visual Inertial System (VIS) by video enhanced inertial
measurement unit
Automatic Removal of Moving ObjectsDelete captured data of moving objects using Double Scan
Check And AdjustField procedure for targetless checking
of angular parameters
Navigation Sensors
Visual Inertial SystemsVideo enhanced inertial measuring system to track movement of the scanner
position relative to the previous setup in real time
TiltIMU based, Accuracy: 18″ (for upright
and upside down setups with +/- 10° inclination)
Geolocation SensorsAltimeter, Compass, Global Navigation Satellite System
WirelessIntegrated wireless LAN (802.11 b/g/n)
Data StorageLeica MS256, 256 GB exchangeable USB 3.0 flash drive
Hardware Specifications
Scanning TechnologyTime of flight enhanced by Waveform Digitising (WFD) technology
Laser Class1 (in accordance with IEC 60825-1:2014), 1550 nm (invisible)
Dimensions120 mm × 240 mm × 230 mm / 4.7″ × 9.4″ × 9.1″
Weight5.35 kg / 11.7 lbs, nominal (without batteries)
Mounting MechanismQuick mounting on 5/8″ stub on lightweight carbon tripod or tripod adapter
Internal Battery2 × Leica GEB364 internal, rechargeable Li-Ion batteries
Duration: Typically up to 4 hours
Weight: 340 gr. per battery
ExternalLeica GEV282 AC adapter
Operating Temperature-5° to +40°C
Storage Temperature-5° to +70°C
Operating Low Temperature-10° to +40°C
Dust/HumiditySolid particle/liquid ingress protection IP54 (IEC 60529)
Accredited calibration certificatesCalibration certificates provided by Leica Geosystems’ Accredited Calibration
Laboratories for distances and angles. The accreditation (SCS 079) is in
accordance with the standard ISO/IEC 17025 and is granted by the Swiss
Accreditation Service (SAS), member of ILAC (International Laboratory
Accreditation Cooperation).
All accuracy specifications are on a level of confidence of 68% according
to the Guide of the Expression of Uncertainty in Measurement (JCGM100:2008)
unless otherwise noted.
